BM5 coil Gallery

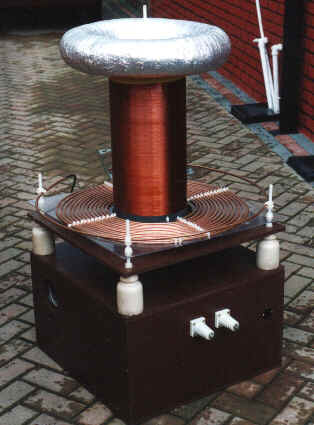

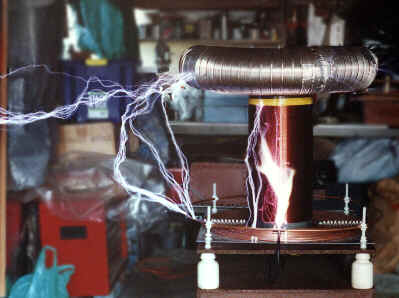

Another coil that was pushing the limits of the HD radio, this time using 29AWG to a hight of 111mm by 355mm again using our 15KVA pole pig and built on a custom base unit with a built in static gap with forced air blower, the coil dies quite fast due to massive over coupling and the HD ratio making the topload and the primary much to close.
